Early Warning - Tech Demo

Demonstration of a full stack implementation using a Early Warning use case

The demo of a early warning system focuses on efficient communication between civil servants and communities in a given region. The system enables civil servants to validate raw threat information and create broadcasts to inform communities about potential hazards, while collecting structured feedback from recipients.

Acknowledgement: This use case has been developed in cooperation with the IGAD Climate Prediction & Applications Centre

Which GovStack features are demonstrated?

With this use case implementation, we demonstrate the GovStack approach through...

Modular and scalable architecture

A-synchronous data exchange between micro services / Building Block enables future scaling to additional messaging channels, sectors and recipients. See architecture diagram below.

Integration of Building Blocks Software

For this demo, we chose the following software applications (does not imply a recommendation):

• BB Messaging: RapidPro (for bi-directional communication)

• BB Information Mediator (Pub/Sub): Kafka

• BB Registry: PostgreSQL

Backend Visualization

As core features of the demo are hidden in the backend, we implemented a side bar visualizing the handling of broadcasts by micro services and Building Blocks.

How to access?

Data Privacy Note: By clicking on one of the access points you enter web applications operated by the Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ) GmbH where these Data Protection Notice and Registration Information are valid.

Early Warning System

Create and broadcast SMS messages

Email: [e-mail]

Password: asdf1234

Check marking "I accept the Terms and Conditions" is technically necessary but has no legal implication.

How to navigate through the demo?

Threat: Raw information regarding a warning or potential hazard. This is what admins (civil servants) see and use to create broadcasts.

Broadcast: Information that is shared with a group of end-users. These are created based on threats and distributed to affected people.

Feedbacks: Messages received in response to broadcasts or about ongoing situations.

1

Log-in

Authentication is done with a simple mock-up (no Identity BB)

2

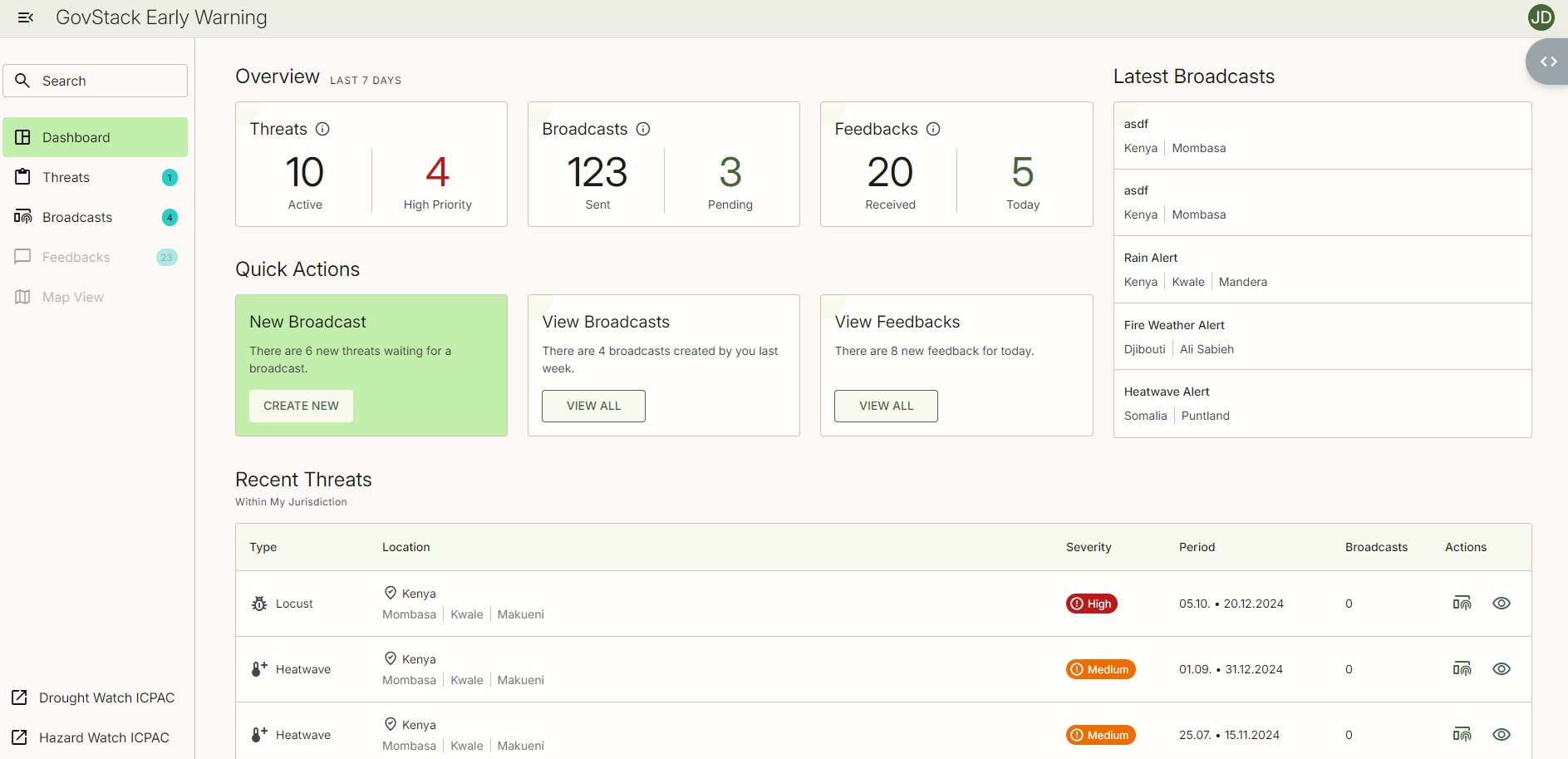

Watch current and past threats and broadcasts

Threats have been ingested from external sources (e.g. hazard watch). Both threats and broadcasts are stored in databases representing the Registry BB.

3

Draft a broadcast

Based on a threat, a broadcast is created and title, languages, content, channel, recipients are added by the admin.

4

Sent a broadcast

The submitted broadcast will be sent to the Information Mediator BB (PubSub). From there, the communication service add recpient data and sents the complete broadcast to the Messaging BB to be sent to a SMS service provider.

5

Receive feedback by recipients (deactivated)

The Messaging Building Block receives a response, gives a label and saves the response. In this demo, this functionality is deactivated.

How are the stack components assembled?

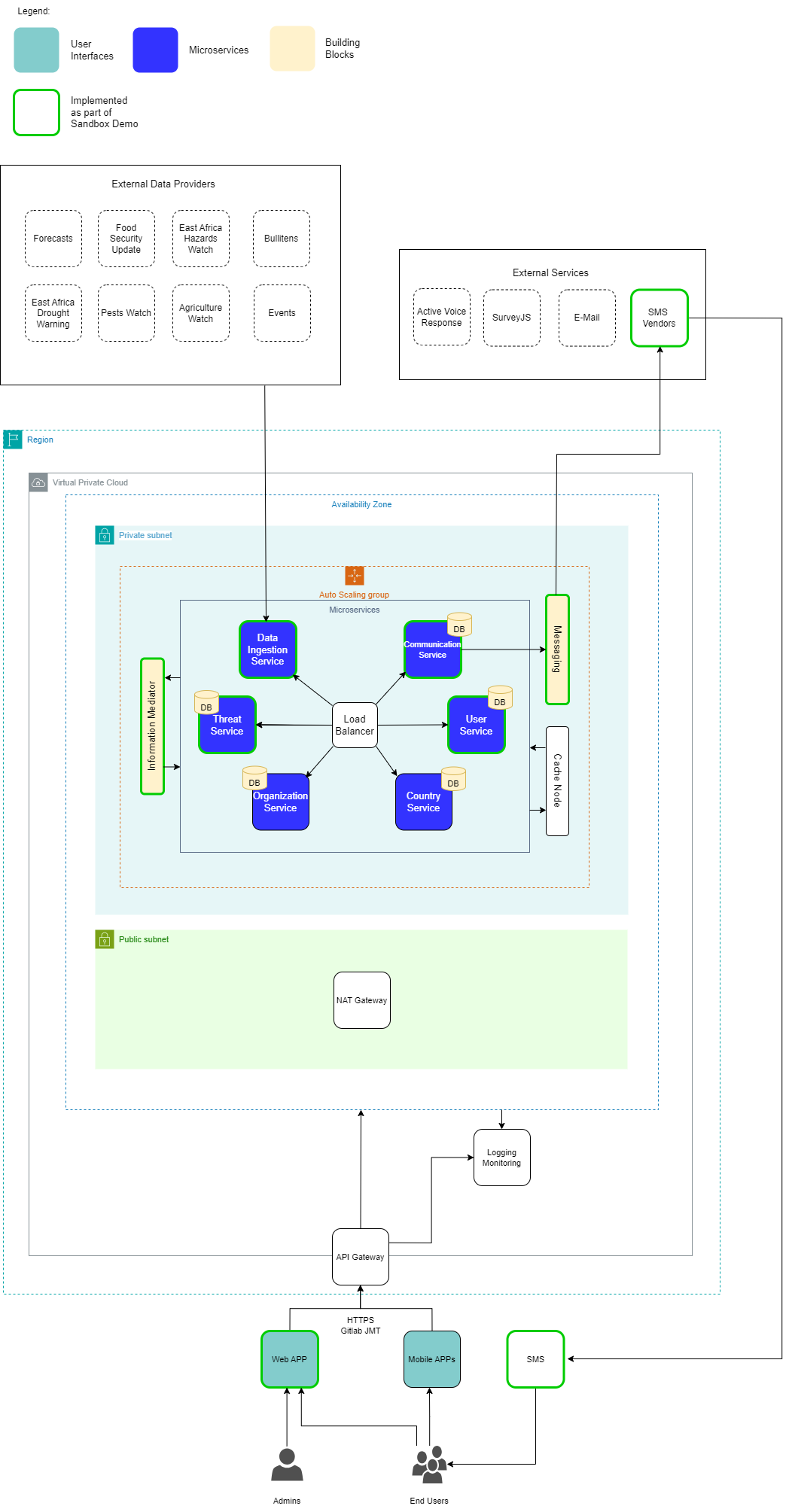

The following diagram shows one use case instance with used applications and Building Blocks.

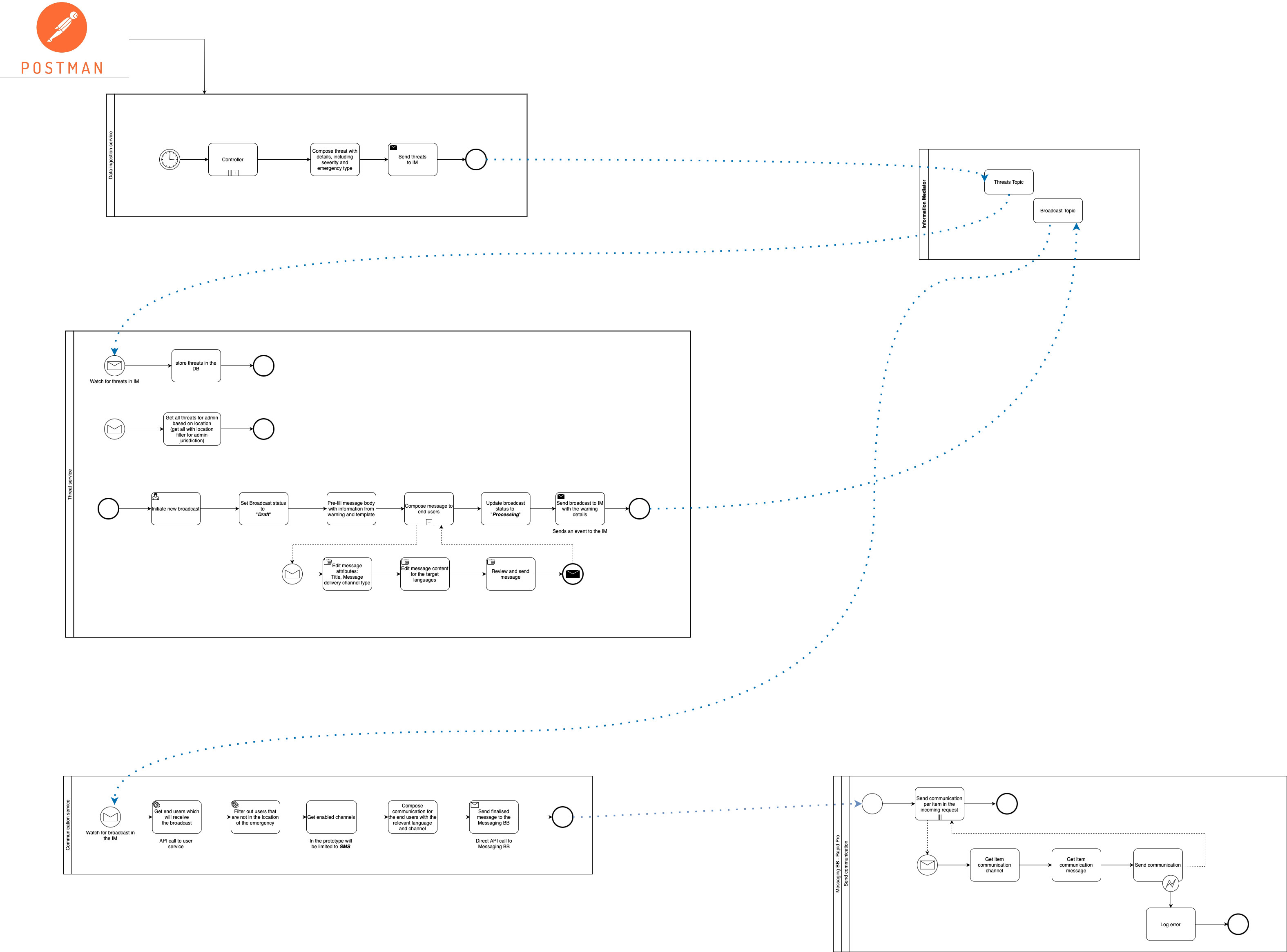

The following diagram shows the BPM of the core process: Using threat information to issue a broadcast.

You can find the open source code and helm charts for deployment in the following repositories:

Thread Service - GitHub Repository

Frontend - GitHub Repository

Log Service - GitHub Repository

Data Ingestion Service - GitHub Repository

Communication Service - GitHub Repository

User Service - GitHub Repository
